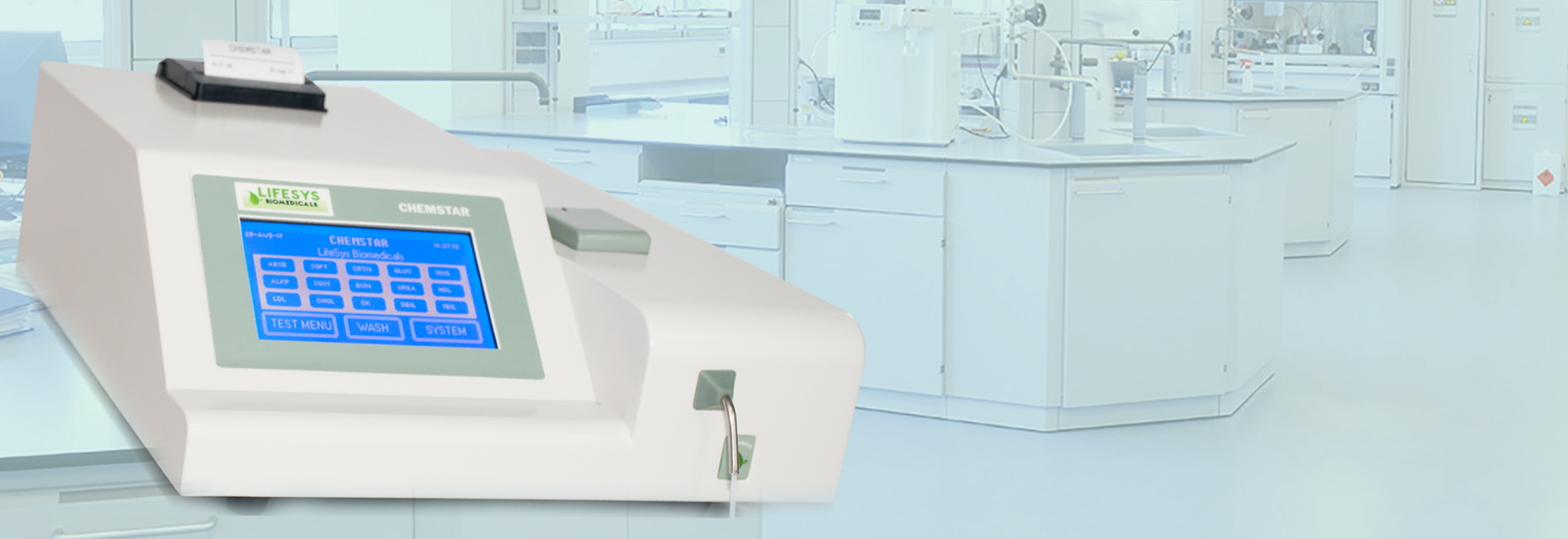

CHEMSTAR powered by high performance state-of-Art sophisticated electronics and sub system. Thoughtfully designed features makes CHEMSTAR a simple and easy-to-use equipment.

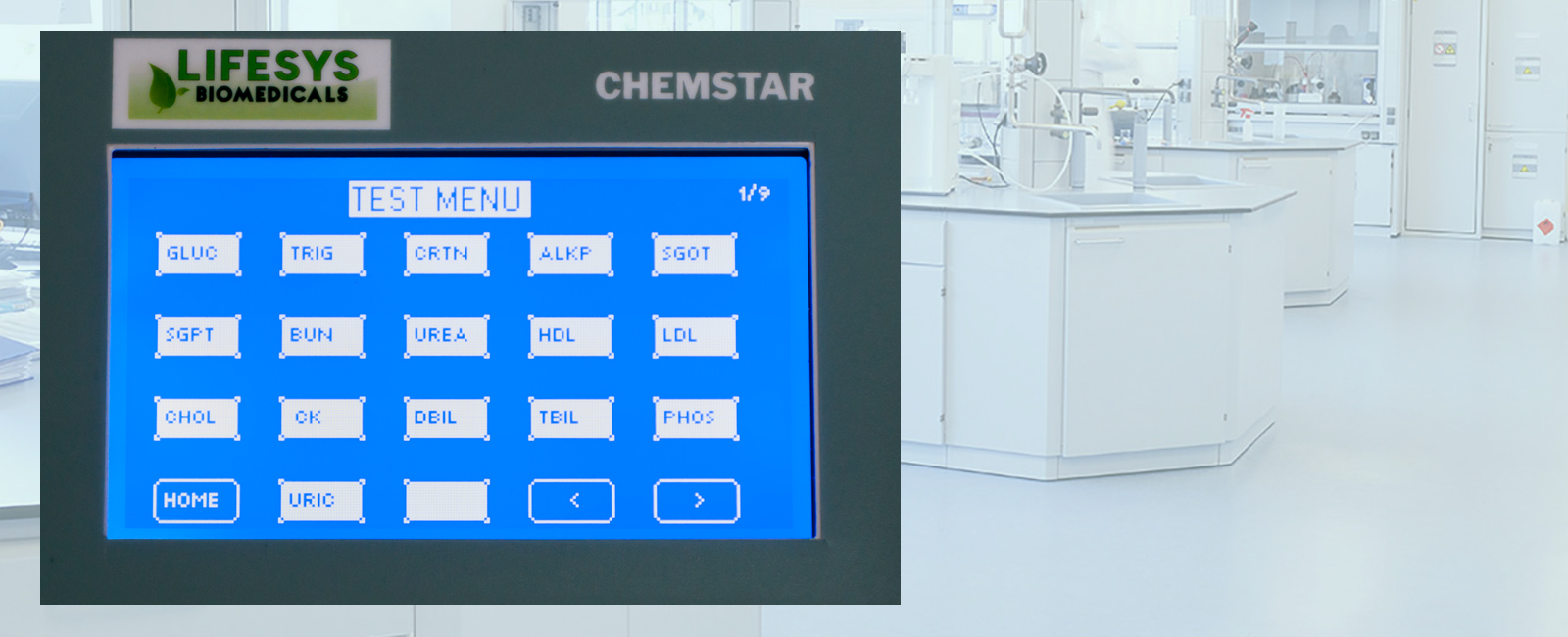

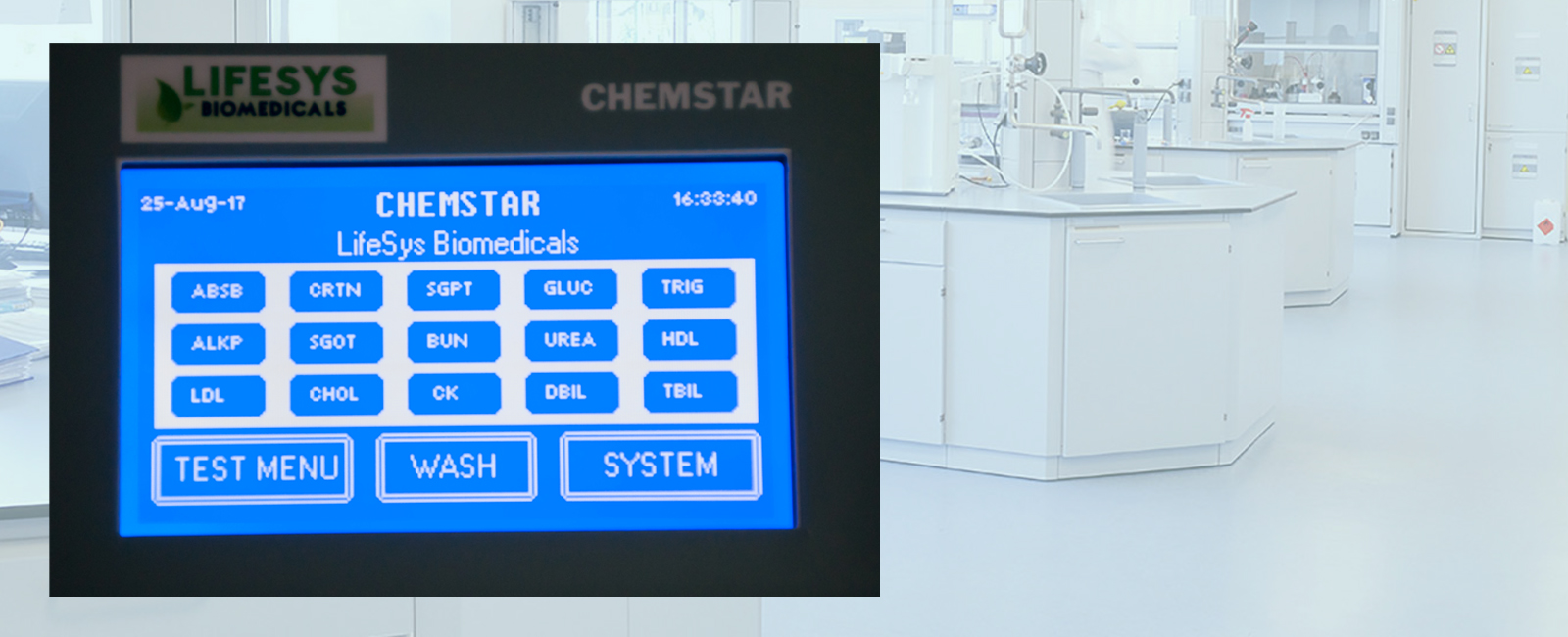

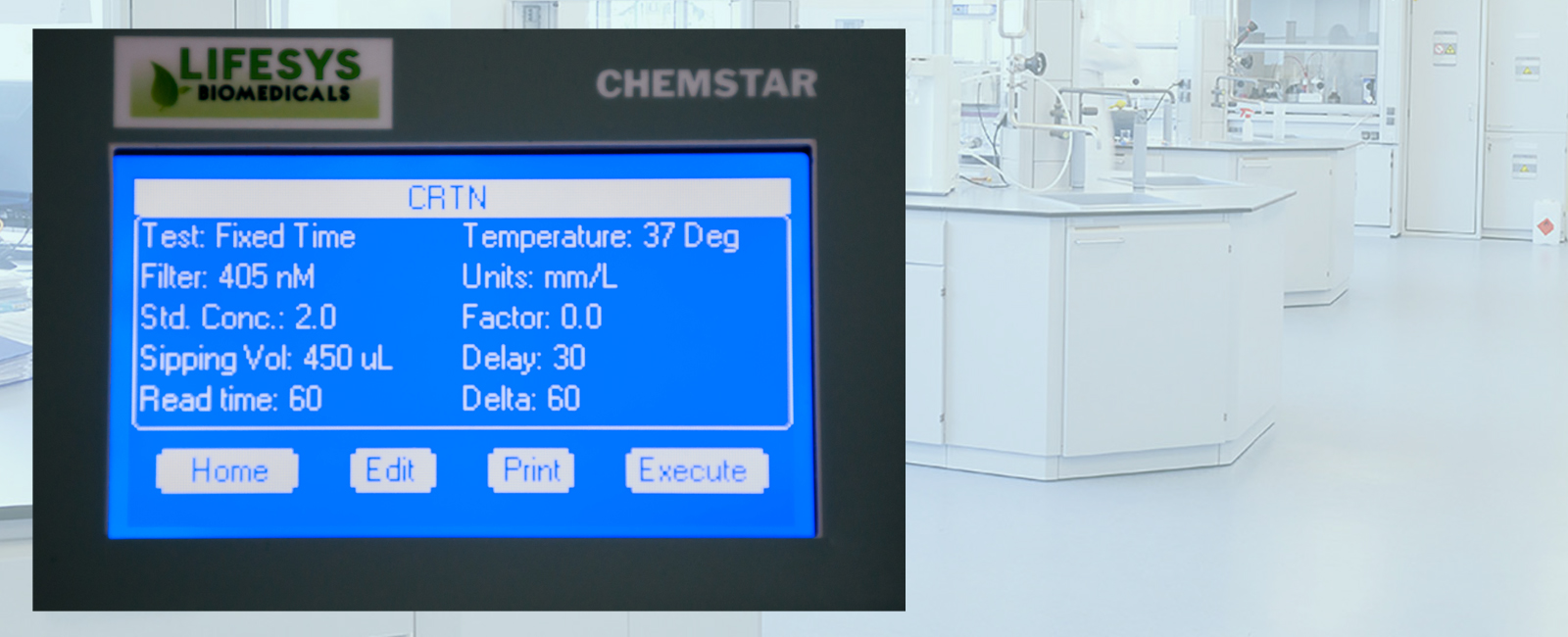

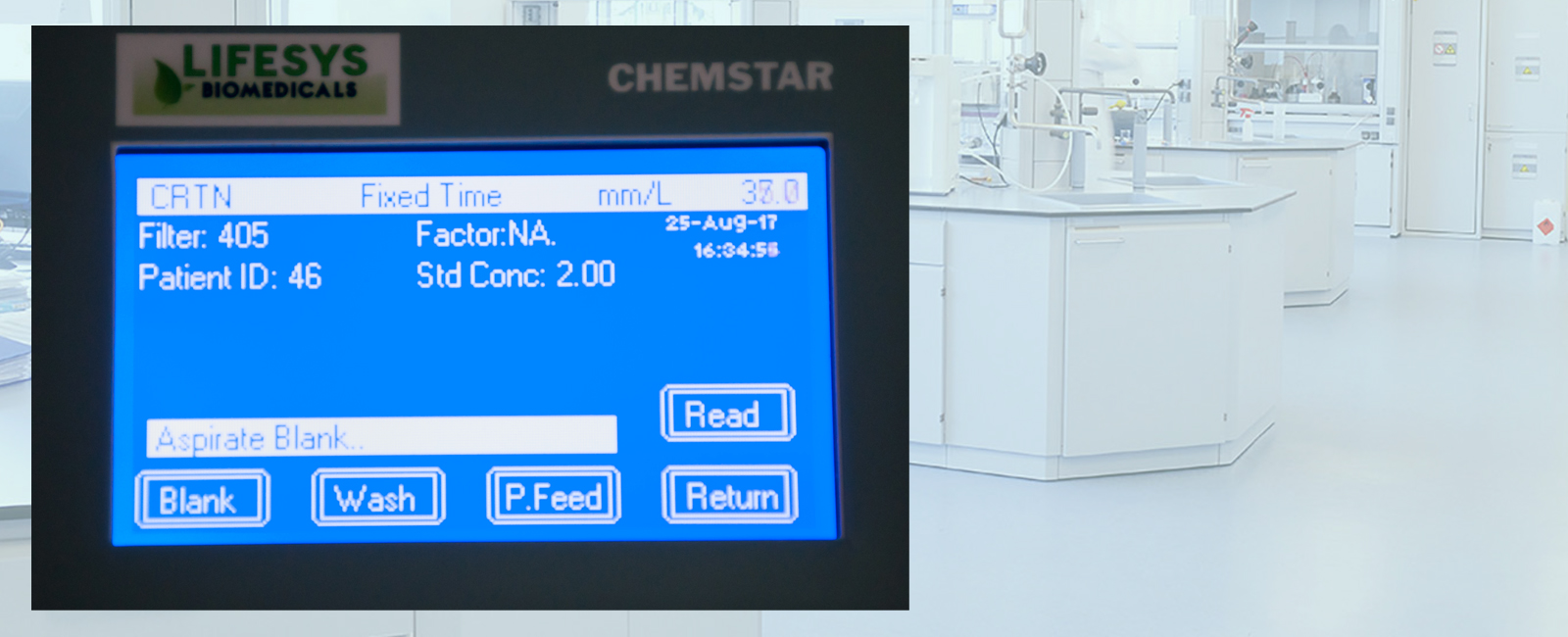

  • Touch screen interface with dynamic test access key

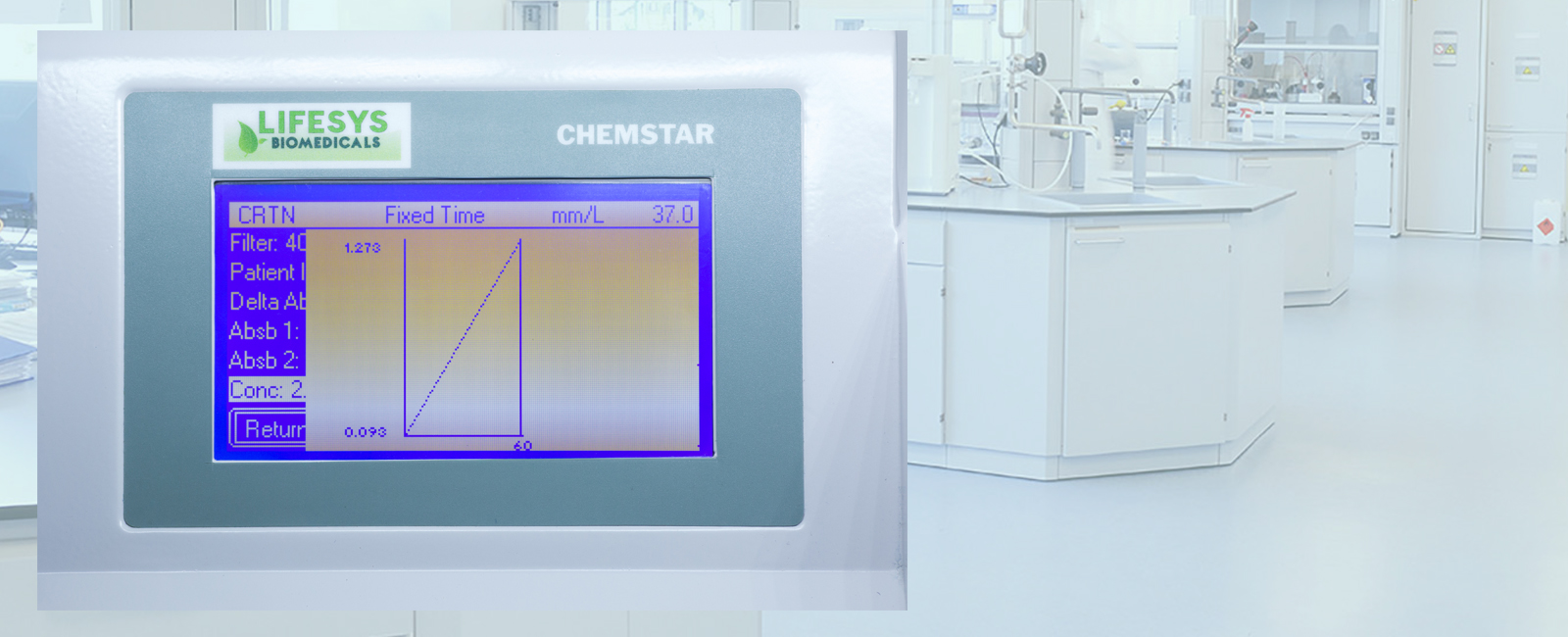

  • Large Graphic display with real time graph display for enzymatic reaction
  • Graph zoom in option providing clarity of the reaction curves
  • Built-in thermal printer to print results, enzyamtic curves and standard calibration curves

  Multi-Programming Modes

  • Absorbance
  • Endpoint with standard, factor, sample blank and differential

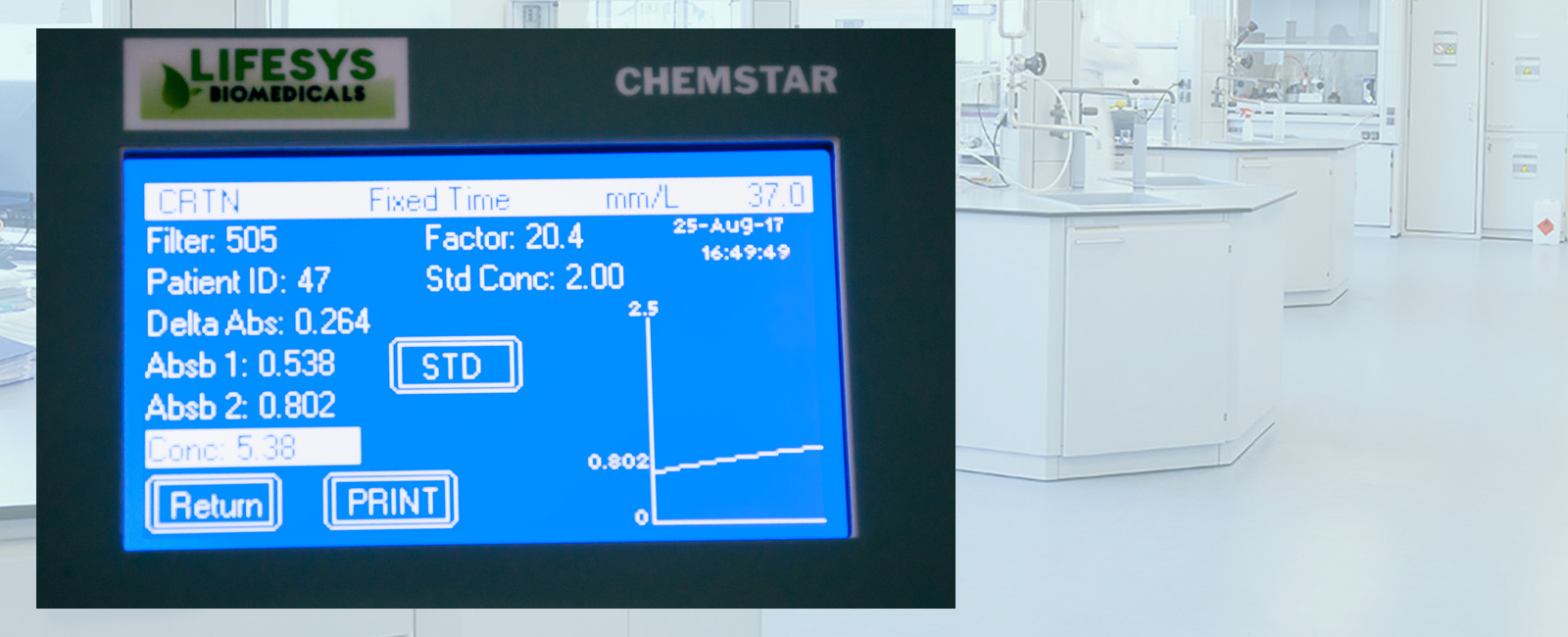

  • Fixed Time(Two-point) and multi point Kinetics
  • Multi standard calibration
  • Mono or bi-chromatic reading
  • Turbidimetry

  Optical System

  • Principle: photometry
  • Range of measurement: 0-2.5 A for 340nm;
    0-3.0 A for 405nm onwords
  • Spectral range selection: automatic via filter wheel
  • Filters: 340, 405, 505, 546, 578 and 630nm plus two free position
  • Bandwidth: 10nm (+/- 2nm)
  • Light source: Halogen lamp 12 V20W
  • Blanking: Automatic
  • Detector: Silicon Photodiode

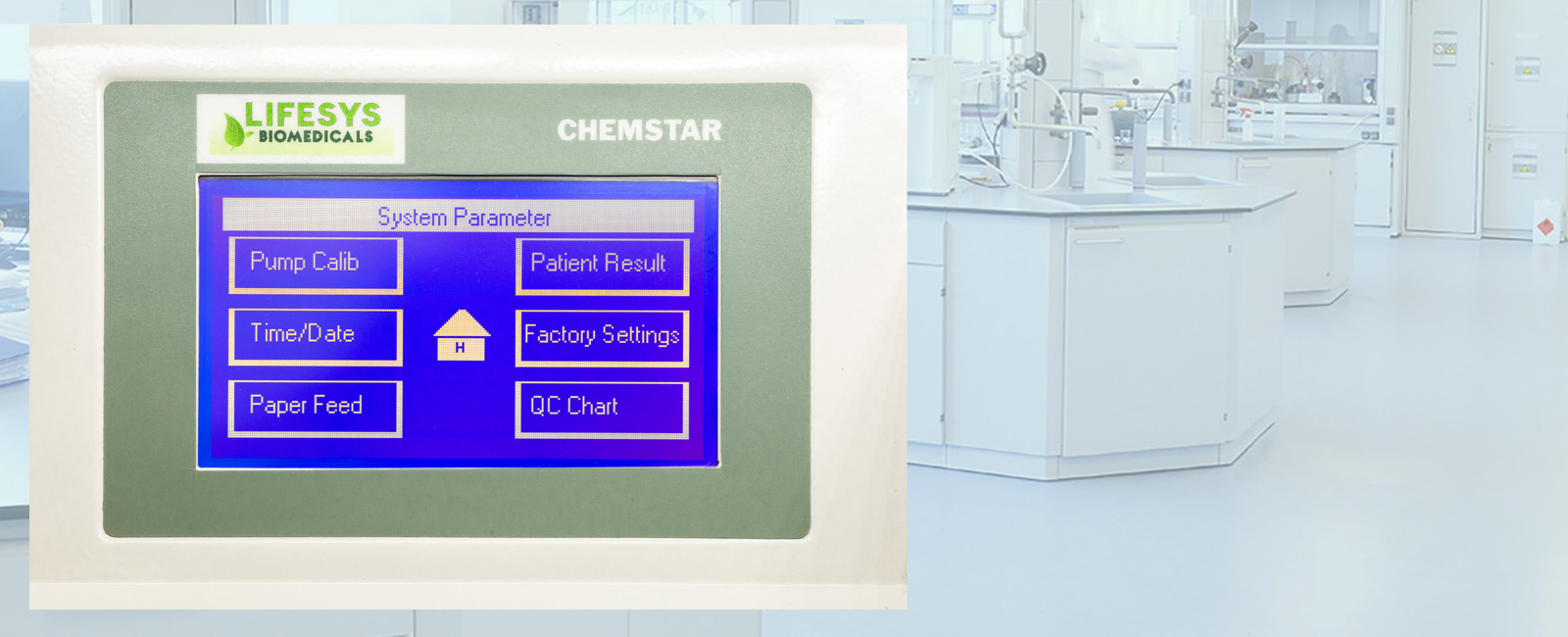

  User Interface

  • Graphic LCD back Lit. 240x64 pixels
  • Touch Screen input
  • Data port
  • Type: Graphic thermal printer
  • Characters perline: 384 dots/line
  • Paper: Thermosensitive - 57mm wide

  Photometric Block

  • Peltier regulated 250C, 300C and 370C
  • Accuracy: +/- 0.10C
  • Flow cell of 33 u L
  • Removable cuvettes: semi-micro and Micro
  • Continuous flow system with perstatic pump incorporated
  • Programmable Sipping Volume

  Memory

  • 150+ User Defined Test Programs
  • 2000 Test Result
  • Reagent Blank
  • 3 Level of QC

  Quality Control Chart

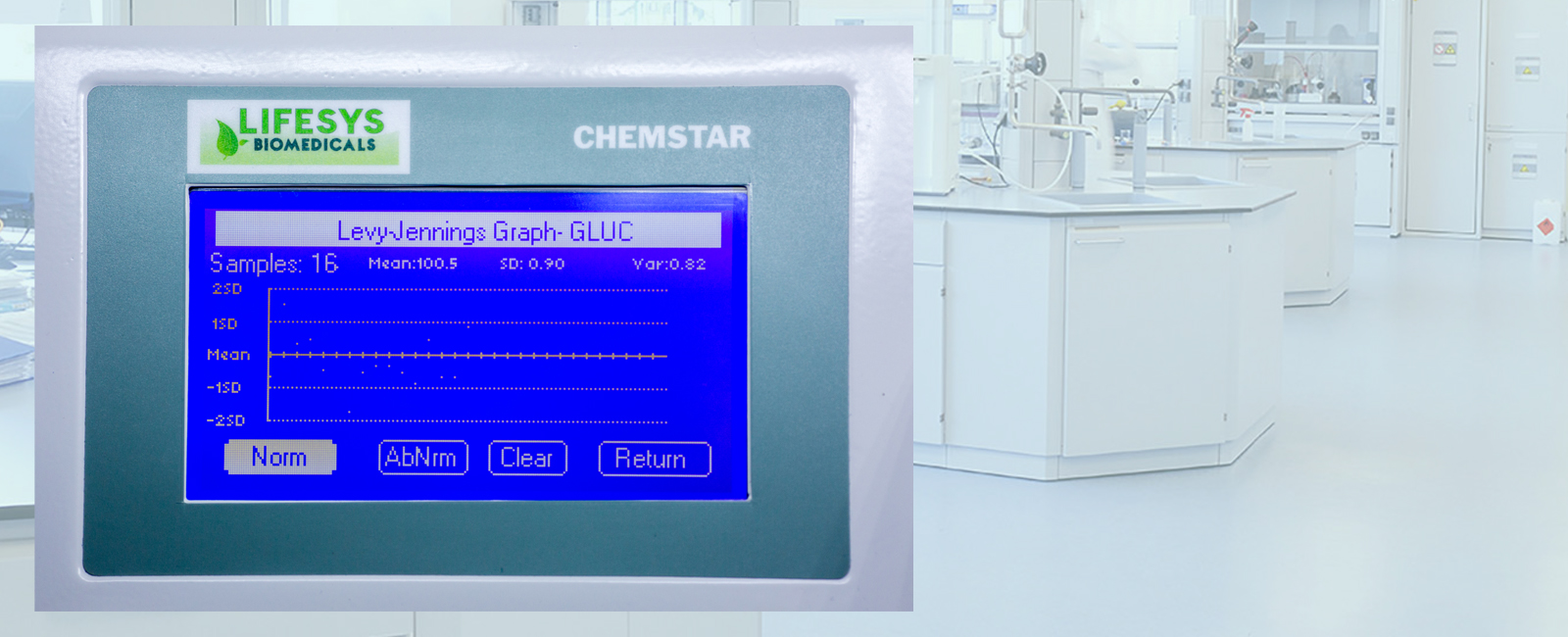

  • Levy-Jennings chart using westgard's rules
  • 30 Normal and abnormal QC values for selected test

  Power/Dimensions

  • Voltage: 120-230 VAC
  • Frequency: 50Hz
  • Maximum power: < 100 VA
  • Maximum relative humidity: 75%
  • Compact form factor
  • Weight: ~5kgs
